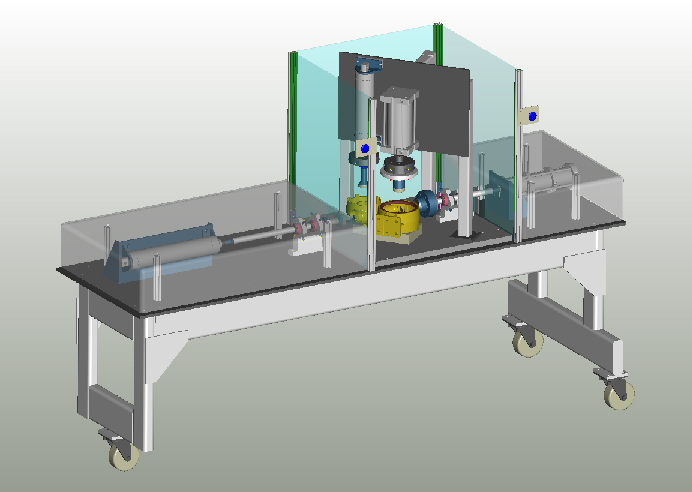

Semi-Automated Bearing & Seal Installation Press
The operator's function is to manually install the bearings, seal, plug, and cast housing into their respective positions. The machine is capable of pressing in 3 bearings and 1 seal into their respective seats with .050" misalignment on machined bores in both horizontal and vertical planes. It also inserted and dimpled a steel plug into the same cast aluminum gear case housing. The machine operated at a 8 second cycle rate. All axes are pneumatically driven .
