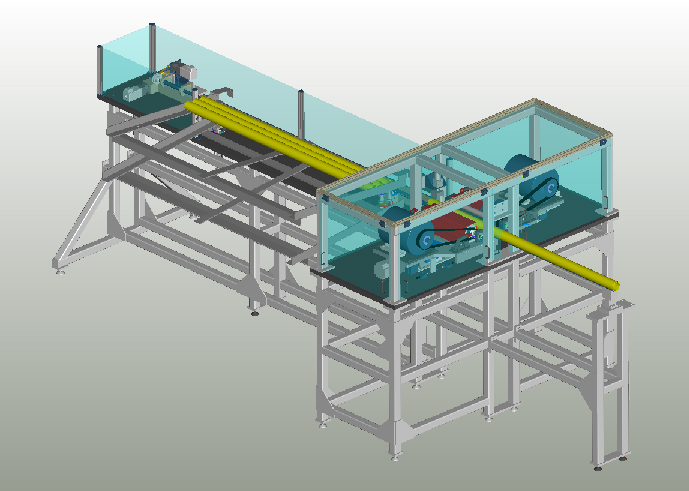

Pipe Slotting Machine, 5 foot pipe

This machine automates the process of slotting PVC pipe at a rate of 2500 slots per minute. Arbors containing blades can be changed with quick release clamping system. Arbor blades typically run on this machine are .010"-.020" thick. Pipe is automatically fed into and discharged from the machine.

Not shown: dust collection system.

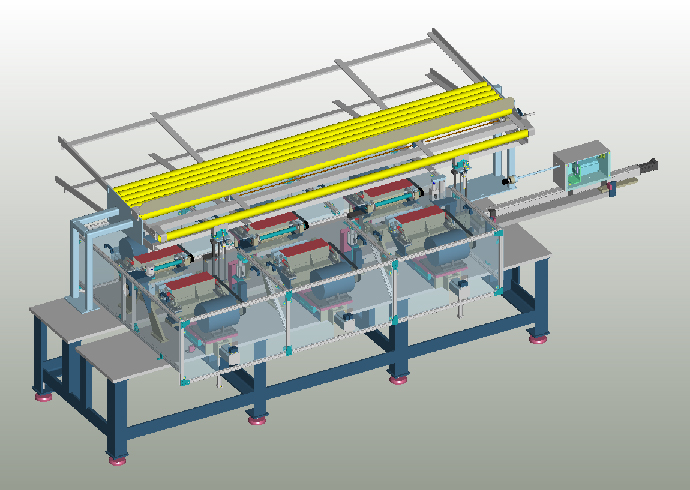

Pipe Slotting Machine, 10 foot pipe

This machine was upgraded to perform its task more efficiently, reliably and with greater safety. Production output increased 250% and can slot pipe at a rate of 3600 slots per minute. The concept of the pipe handling system was duplicated here because it worked very well with the smaller machine shown above.

Not shown: dust collecton system.
